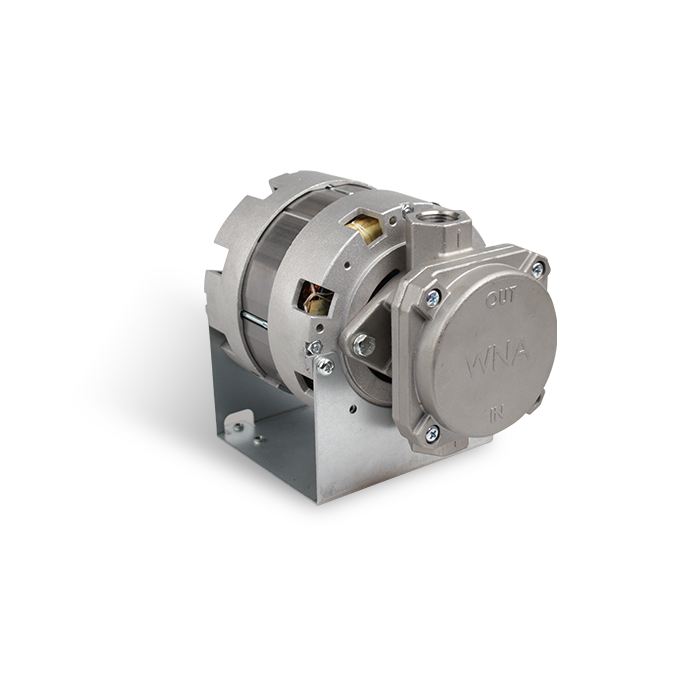

CS-12435LPE6A
- Oil Drive Pumps
-
CS-12435LPE6A
DIMENSION

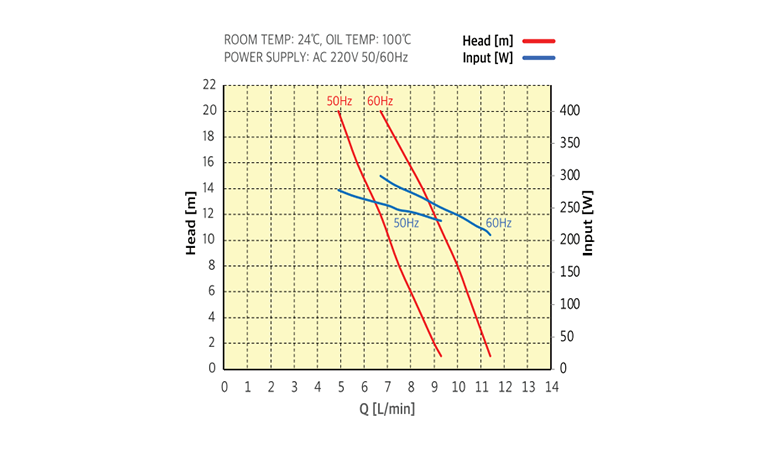

PERFORMANCE CURVE
SPECIFICATIONS
| Item | Model | ||||||
|---|---|---|---|---|---|---|---|
| CS-12435LPE6A | |||||||
| Power Supply | AC 220V, 50Hz | AC 220V, 60Hz | |||||
| Power Consumption [W], (at 10m) | 253 | 247 | |||||
| Rated Head [m], (at 10m) | 7.1 (23.3ft) | 9.5 (31.2ft) | |||||
| Open Capacity [L/min] | 9.5 (150.8GPH) | 11.5 (182.3GPH) | |||||
| Oil Temperature [°C] | 0~150 | ||||||
| Connected | Inlet | PT 1/2" | |||||
| Outlet | PT 1/2" | ||||||
| Dimension [mm] | 179.5x125x149.5 | ||||||
